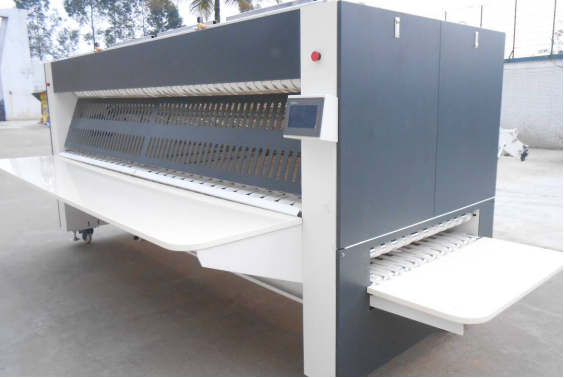

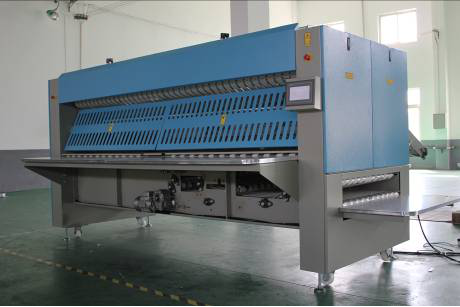

ZD3000-V High Speed Folding Machine(3 meters)
Max folding wide:3000mm Max folding length:3300mm
Folding time /Layer time:32/5
Dimension:4000*2850*1780mm Weight:2000KG
Control Mode:PLC+7inch touch screen Motor Power:1.87KW
Air Compressing:0.7-1.0 Mpa
Large screen touch computer control
Large screen touch computer, which are professional and intelligent.With man-computer dialogue interface, for easy operation.
Fully automatic folding machine cooperate with the ironing machine , more personalized manual control system, make the operation more simple and more convenient.
With various kinds of fabric, users can set up a multiple of folding process.
High-efficiency with outstanding performance
With nearly 50 meters/min speed of high quality stable and reliable folding .The key components of fold master are imported, to make it effective and stable operation for a long time.
Speed synchronization between ironer and folder, thru communication between inverters automatically adjust the speed of folder when the speed of ironer is feeding smoothly to the folder.
Heavy duty bearings and deliver tape, to make operation stable.
Professional design, strong and durable
Standard 2 primary folds and 3 cross folds meet most laundry needs worldwide. Primary fold and first cross by air-jet, second and third cross fold by blade for long lasting reliable folding while give maximum protection to fabric.
Three folder are all using high speed air knife fold, to reduce wear and care for fabrics effectively.
Strength structure, to ensure the machine firm and durable.
Safety and reliable, golden quality
The perfect automatic function checking, convenient for daily use and maintenance Intelligent judge of fabric and refuse to fold, can effectively guarantee the equipment operation
Emergency stop button around the equipment, in case of emergency, can stop the machine around any place, to ensure your safety.
